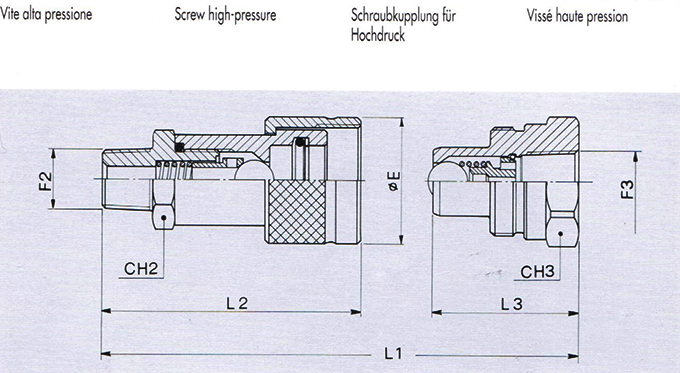

PVS1 / PVS3 千斤頂

Dati tecnici technical data technische daten details techniques :

  • Materiali : acciaio speciale ad alta resistenza zincato e passivato bianco. Sfere occlusione UNI 100CR6 grado di precisione 'A'.
  • Guarnizionii : in gomma nitrilica NBR. A richiesta FPM ( Vitom ™ ) o EPDM.
  • Temperatura di esercizio :con guarnizioni standard -25°C / + 120°C.
  • Antiestrusore :in Teflon puro.
  • Material :special steel for high pressures zincplated and white bichromated. Shut-off balls UNI 100CR6 precision's degree 'A' .
  • Seals :standard in nitrile NBR . FPM ( Vitom ™ ) or EPDM on request.
  • Working temperature:with NBR standard seals -25°C / + 120°C.
  • Back - up ring :in pure teflon

  • Werksoff :Hochbeständiger Sonderstahl verzinkt und weiss chromatiert. Ventilkugeln UNI 100CR6 Gütegrad ' A '.
  • Dichtungen :aus Nitril NBR lieferbar. FPM ( Vitom ™ )und EPDM Dichtungen auf Anfrage ebenfalls lieferbar.
  • Betriebstemperatur :mit NBR Standard-Dichtung -25°C / + 120°C.
  • Stützring :aus rein teflon.

  • Matériel :acier spécial á haute résistence zingué et bichromaté blanc. Obturation á billes UNI 100CR6 degré de précision ' A '.
  • Joints :nitrile NBR en standard. FPM ( Vitom ™ ) ou en EPDM sur demande.
  • Température de service :avec joints standard -25°C / + 120°C.
  • Bague anti extrusion :en teflon pur.
